We are the ONLY company that offers Resonance Ultrasound Spectroscopy (RUS) Testing using both

Impulse and Swept Sine Excitation

Free Feasibility Comparisons

Impulse & Swept Sine Resonance Testing

Turbine Components - Blades, Vanes, Disks, and other components.

Evaluate your New, Serviced, or Repaired parts quickly. Is there a part that may cause early failure? If so, Resonance Testing can help you identify it.


This is NDT/E 4.0 and it is easy to set up and can be performed after minimal training.

Additive Manufacturing (AM)

Validate your modeled frequencies, measure the consistency of your build or powders, and perform 100% pass/fail component testing.


Segregate out your Outlier parts quickly and save your valuable CT time.

Forgings, Stampings, Powdered Metal, and Etc.

Fast and reliable defect detection for internal, external, and material-related issues. This is a single inspection for all those areas of interest.


Take the subjectivity out of your inspection process!

Swept sine resonance testing & comparisons

Smaller batch testing, Impulse vs

Swept Sine correlation studies


Take the subjectivity out of your inspection process!

Papers and Presentations

Please give these a read. They are all very informative.

NDT RAM of Turbine Blades (pdf)

Download

NDT-RAM System Upgrades (pdf)

Download

RAM for Lattices (pdf)

Download

RUS ART Modeling Germany applsci-12-07648-v2 (pdf)

Download

The Sonic Resonance Method and the Impulse Excitation applsci-11-10802 (pdf)

Download

2022-10-24 to 27-Conference on NDE4.0-Berlin-VF (002) (pdf)

Download

2022-10-31 to 11-04-ASTM-ICAM-Orlando-2022 (pdf)

Download

Impulse Testing requires No fixturing, just a quick setup and simple project creation!

-No complex training or engineering support is needed

-Weight and temperature compensation included (RAM PCRT)

-No development or reoccurring monthly fees

-Tests can be run in as little as 3 seconds per part

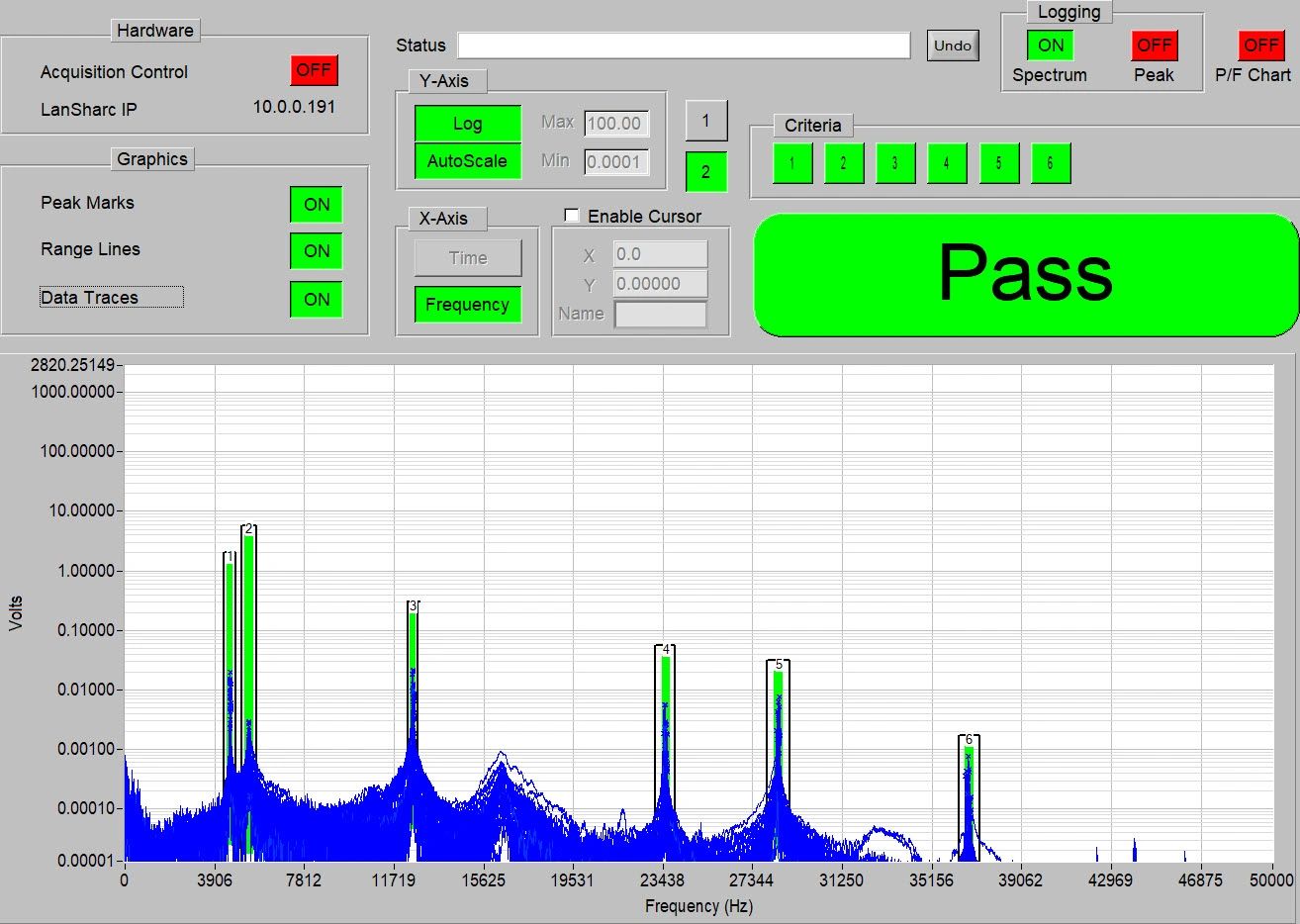

NDT-RAM Software

Highlights

We are experts in the field and can help you with your inspection needs. If you need some quick feasibility data, some small batch production testing, or even a full system for your facility, we are here for you!


NDT-RAM is Full-body, Fast, Accurate, and Affordable.


RAM PCRT is included with the standard software

Resonance Testing is what NDT 4.0 is all about!

The Resonances (natural frequencies)  provided are key to understanding your product. These resonances are a function of a part's geometry and material properties. By measuring the resonances of a part, one determines the structural characteristics of that part in a single test.   The data can be stored for each part and used for NDT 4.0

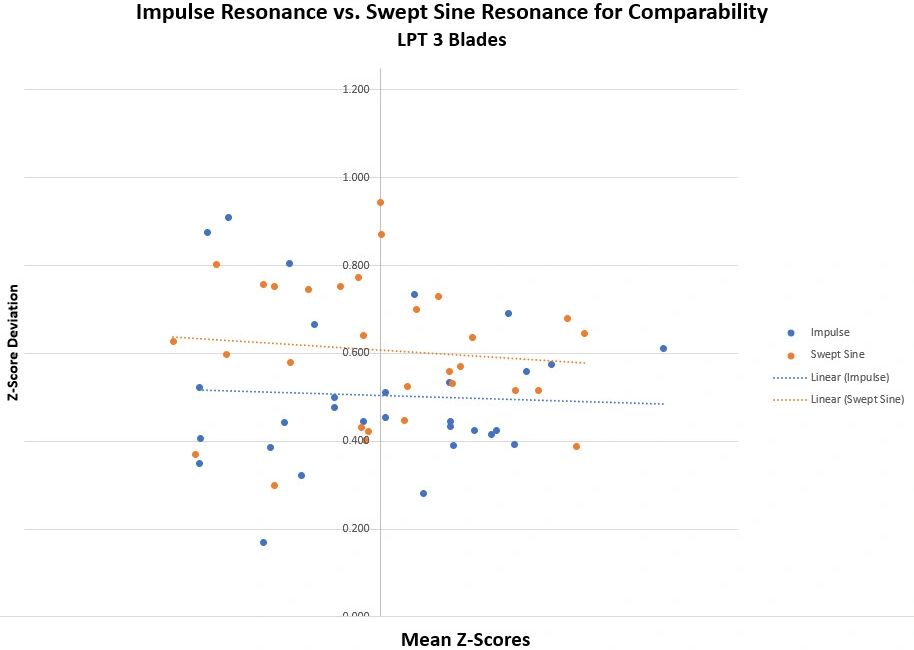

Impulse vs Swept Sine for Turbine Blades

Resonance Testing Systems and Services

Testing Systems are available for purchase

Pass/Fail testing for defects, missed operations, heat treatment validation, missed operations, and six sigma controls. Check out the pictures and videos below!

Testing Services are here when you need them

Are you having an issue with your parts, need to reduce your risk, want to understand how consistent your product is batch to batch, or do you need some statistical data for your customers or a project? We can perform these types of tests for you and with same day or next day turnaround possible.

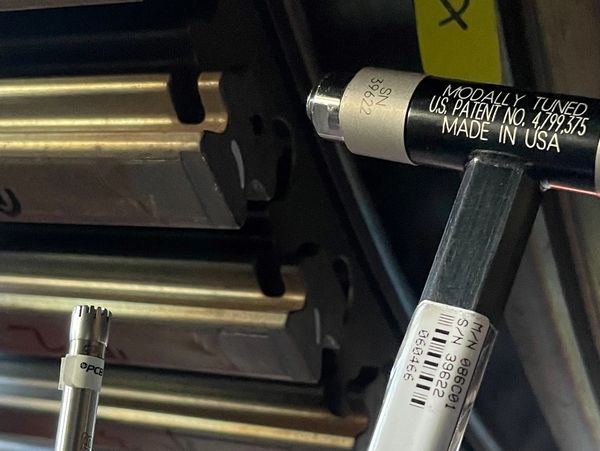

HPT Blade being tested on an NDT-AUTO system

Check out this video

Photo Gallery

    Impulse System Operation Videos:

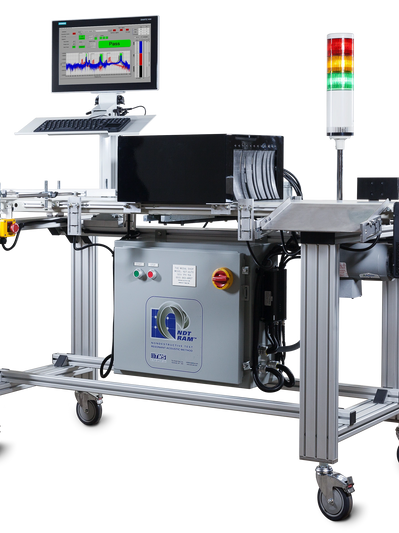

    NDT-AUTO



      The NDT-AUTO System is perfect for applying efficient and reliable         quality control testing to high volume production lines of powdered       metal parts, castings, additive manufactured, and similar components.

    NDT-DTF

     The Drop Test Fixture, Model NDT-DTF Resonant Inspection System, allows automated sorting and quality testing of small metal injection molded (MIM), powder injection molded (PIM) , and additive manufacturinf (AM) parts.

    NDT-ARAM

     NDT-ARAM Adaptive Resonant Acoustic Method compensates for process variation such as weight differences from part to part. The inspection system is then able to discern resonant frequency shifts that result from internal or external flaws.

    Free Parts Test

    Resonance Inspection Can Help!
